Welcome to the HPC 101 series!

This guide covers the essentials of High-Performance Computing (HPC). If you are new to supercomputing, don’t worry. We will walk through everything step-by-step, from logging in to submitting your first job.

Table of Contents

• 1. What is HPC?
• 2. How to SSH into an HPC Cluster
• 3. How to use Modules
• 4. Submit Your First Job with Slurm

> 1. What is HPC?

High-Performance Computing (HPC) utilizes supercomputers or computer clusters to solve complex computational problems. While a standard workstation can handle everyday tasks, HPC is designed for massive scale, widely used in fields ranging from engineering and science to finance and psychology. It is a rapidly growing technology, especially in the age of AI and Machine Learning.

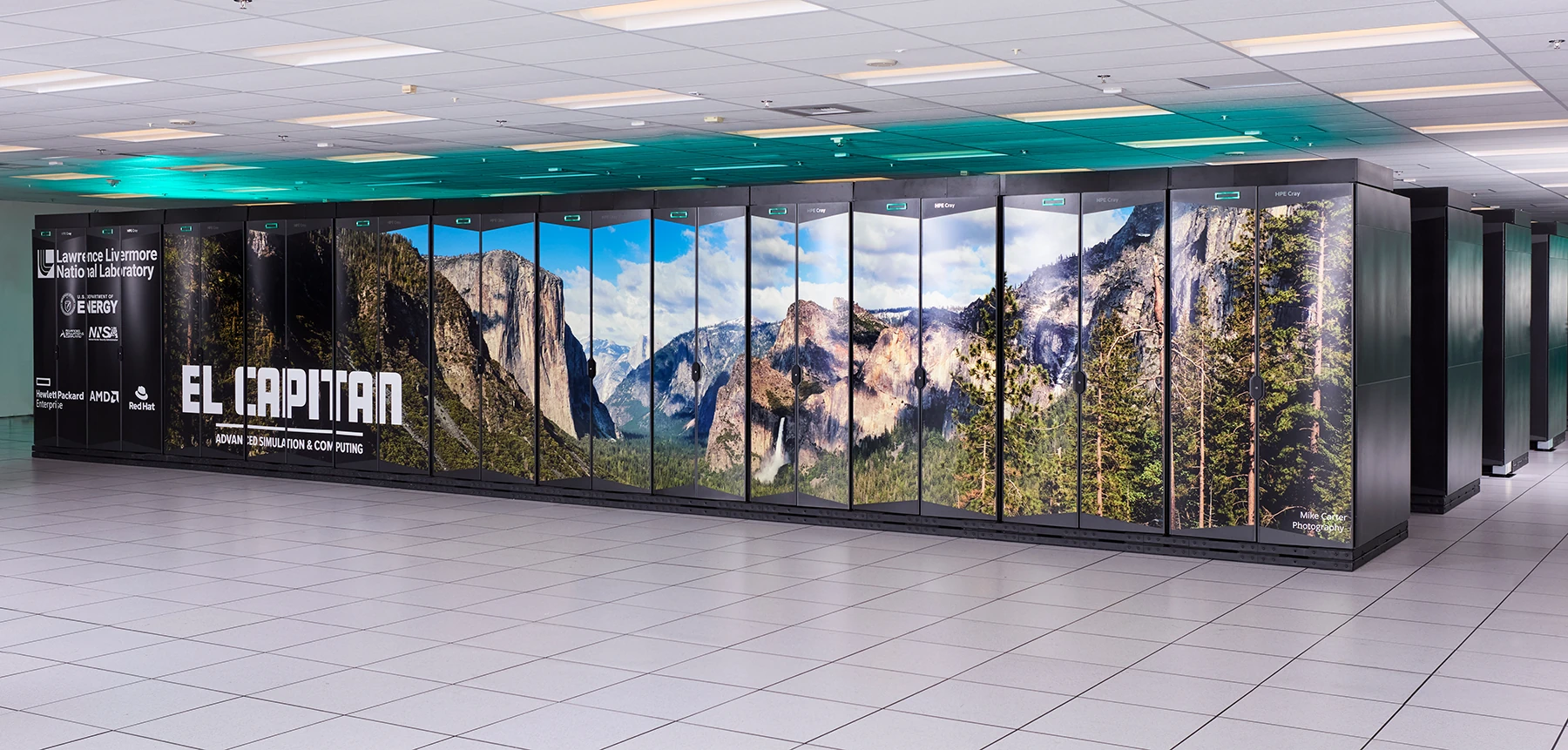

Research institutes and companies around the world leverage HPC to develop new products or run intensive simulations. One of the world’s fastest HPC systems, El Capitan, is hosted by Lawrence Livermore National Laboratory. (Reference).

Why do we use HPC?

HPC is a powerful tool that allows researchers and engineers to solve problems demanding high computational performance that cannot be handled by consumer-grade PCs. Here are some example cases,

• AI/ML: Training large models using multiple GPUs simultaneously.
• Pharmaceutics: Simulating molecular dynamics to develop new medicines.
• Physics/Chemistry: Running quantum chemistry calculations or simulating protein folding.
• Meteorology: Processing large amounts of data for accurate weather forecasting.

> 2. How to SSH into an HPC Cluster

Before we compute, we need to connect. Watch the tutorial video below or follow the text guide.

(Click the image to watch the tutorial on YouTube)

What is SSH?

SSH (Secure Shell) is a network protocol that enables secure connections between computers. It is used for remote access, command execution, and file transfers. Don’t worry if these terms sound technical. Simply, think of it as a secure tunnel connecting your PC to the HPC cluster.

Let’s connect!

1. Open a terminal window.
   • Linux/Mac: Open the built-in Terminal app.
   • Windows: Use Command Prompt (CMD), PowerShell, or third party tools like PuTTY or MobaXterm.

2. Type the following command:

   $ ssh <YOUR_ID>@<CLUSTER_HOST_NAME>
   # Example: $ ssh [email protected]


   (Note: The $ sign indicates the command-line prompt. Do not type it.)

3. Security Prompt: If this is your first time connecting, you will see a message asking: “Are you sure you want to continue connecting?” Type yes and press Enter.

4. Enter Password:
   Type your user password.

   Note: You will NOT see asterisks (****) or the cursor moving. This is a standard security feature in Linux. Just type your password and press Enter.

5. Success:
   If you see a screen similar to the one below, you have successfully logged in!

   [user123@login-node-01 ~]$


> 3. How to use Modules

On HPC, you can’t simply install software with sudo apt-get. Instead, we use the Module System.

(Click the image to watch the tutorial on YouTube)

What is the Module System?

Most HPC systems manage software using Environment Modules or Lmod. Unlike your personal computer where you install software globally, HPC clusters use modules to:

• No Conflicts: Different users can use different software versions simultaneously.
• Reproducibility: You can keep your environment consistent for your research.
• Auto-loading: When you load a module (e.g., OpenMPI), it automatically loads necessary dependencies (e.g., GCC compilers).

Essential Commands

Here is a cheat sheet for module commands:

# View list of ALL available modules on the system
$ module avail

# Load a specific module
$ module load <NAME>/<VERSION>
# Example: module load openmpi/4.1.8

# View list of CURRENTLY loaded modules
$ module list

# Unload a module
$ module unload <NAME>

# Unload ALL modules
$ module purge

Recommended Practices

• Avoid .bashrc: Do not put module load commands in your .bashrc file. This could cause conflicts and login issues.
• Check availability first: Use module avail to see the exact name and version.
• Be specific: Always specify the version number (e.g., module load openmpi/4.1.8). If not specified, the system default is loaded, which might be changed.

> 4. Submit Your First Job with Slurm

Now, you are ready to submit a job.

(Click the image to watch the tutorial on YouTube)

What is a Job Scheduler?

In an HPC environment, you do not run heavy calculations directly on the Login Node. Instead, you submit a “job” to a Scheduler like Slurm, PBS, SGE, or LSF. The scheduler manages resources and assigns your job to available Compute Nodes.

Note: This tutorial primarily focuses on Slurm, the most widely used scheduler in modern HPC systems. PBS/Torque examples are provided for reference, but commands and options may vary. Always consult your cluster’s documentation for scheduler-specific syntax.

• Interactive Jobs: Useful for development, debugging, or tasks requiring a GUI. You get a shell on a compute node.
• Batch Jobs: Useful for long running tasks. You submit a script, and the system runs it when resources are available.

The “Hotel” Analogy

Beginners often make the mistake of running heavy tasks directly after logging in. Please don’t do that.

Think of the HPC cluster as a Hotel.

• Login Node = Hotel Lobby: This is where you check in. It’s a shared space. You wouldn’t set up a tent and sleep in the lobby, right?
• Compute Node = Guest Room: This is your private room where you can actually work (sleep).
• Scheduler = Receptionist: You ask the receptionist (Scheduler) for a room (Resources), and they assign you one.

We use a Job Scheduler (like Slurm) to ask for resources.

Let’s submit an Interactive Job

Use this when you need to test or debug code in real-time.

1. Request a session (get a room):

    [user123@login-node-01]$ srun --pty /bin/bash
    srun: job 12345 queued and waiting for resources
    srun: job 12345 has been allocated resources
    [user123@compute-node-01]$

    # Note: your cluster may require specifying partition:
    # $ srun -p interactive --pty /bin/bash


   • Your hostname will change from login-node-01 to compute-node-01. You are now in your “Guest Room”.

2. When you are done, type exit to return to the login node (lobby):

    [user123@compute-node-01 ~]$ exit
    [user123@login-node-01 ~]$


Let’s submit a Batch Job

This is for long-running simulations. You write a “script” (reservation request) and submit it.

1. Create a script (e.g., job_script.sh) using a text editor like vim or nano.

   Slurm PBS/Torque

   #!/bin/bash
   # Tells the system that this is a Bash script

   #SBATCH --account=myAcct        # Account name
   #SBATCH --partition=myPart      # Partition name
   #SBATCH --job-name=first_job    # Job name
   #SBATCH --output=result.out     # Standard output log
   #SBATCH --error=result.err      # Standard error log
   #SBATCH --nodes=1               # Number of nodes
   #SBATCH --ntasks=1              # Number of tasks (processes)
   #SBATCH --time=00:10:00         # Time limit (HH:MM:SS)
   #SBATCH --mem-per-cpu=4G                # Memory per cpu

   # Load necessary modules
   module load python/3.12.12

   # Run your command
   echo "Hello, HPC World!"
   python3 --version

   #!/bin/bash
   # Tells the system that this is a Bash script

   #PBS -A myAcct                  # Account name
   #PBS -q myQueue                 # Queue name
   #PBS -N first_job               # Job name
   #PBS -o result.out              # Standard output log
   #PBS -e result.err              # Standard error log
   #PBS -l nodes=1:ppn=1           # Number of nodes and processors per node
   #PBS -l walltime=00:10:00       # Time limit (HH:MM:SS)
   #PBS -l pmem=4gb                 # Memory per cpu

   # Load necessary modules
   module load python/3.12.12

   # Change to submission directory
   cd $PBS_O_WORKDIR

   # Run your command
   echo "Hello, HPC World!"
   python3 --version

   • Notes:
     • Make sure to modify the script to meet your requirements
       (Important: Replace “myAcct” and “myPart” with your actual account and partition names provided by your system administrator.)
     • #SBATCH: Slurm directives readable to Slurm scheduler
       (#SBATCH is one word not “# SBATCH”)
     • Actual tasks located under Slurm directives
     • Your job will get terminated once your tasks are done
       (in case you submitted a longer time than required)
2. Submit the job:
   Slurm PBS/Torque

   $ sbatch job_script.sh
   Submitted batch job 12345

   $ qsub job_script.sh
   12345.headnode

   (Remember this Job ID (12345). Reference this number in your ticket!)

3. Check the status:
   Slurm PBS/Torque

   $ squeue --me
   JOBID   PARTITION   NAME        USER      ST  TIME  NODES   NODELIST(REASON)
   12345   myPart      first_job   user123   R   0:02  1       compute-01

   $ qstat -u user123
   Job ID     Name       User       Time Use  S  Queue
   --------   --------   --------   --------  -  -----
   12345      first_job  user123    0:02      R  myQueue

   • Job Status Columns (Slurm):

     Column	Description
     JOBID	Your Job’s assigned ID
     PARTITION	Partition name
     NAME	Job name
     USER	User name
     ST	Job status: R=Running, PD=Pending, F=Failed, S=Suspended, CG=Completing
     TIME	Time elapsed since job started
     NODES	Number of requested nodes

   • In case you want to cancel the job, use scancel <JOBID> or qdel <JOBID>

     Slurm PBS/Torque

     $ scancel 12345

     $ qdel 12345

4. View results: Once the job finishes (or disappears from squeue), check the output file:

    # Success log
    $ cat result.out
    Hello, HPC World!
    Python 3.12.12

    # Error log (If something went wrong)
    $ cat result.err


Summary

1. SSH: The secure tunnel to enter the cluster.
2. Modules: Load software cleanly.
3. Login Node (Lobby): Only for checking in.
4. Compute Node (Room): The actual place to run work, assigned by the Scheduler.
5. Job Submission: Use sbatch for batch scripts and srun for interactive testing.

Congratulations! You have successfully checked in, set up your environment, and run your first job. In the next post, we will move our luggage (Data) to this new hotel room.

Need Help?

• Check your cluster’s documentation for specific Slurm configurations
• Use man sbatch to see all available options
• Most clusters have a #help channel or support email

Happy Computing!
